Productdetails:
|
| Naam: | Dichtingsproduct-uitspreidende Machine | Type: | LJST02A |
|---|---|---|---|
| Het werk luchtdruk: | 0.3-0.6MPa | Dichtingsproduct uitspreidende druk: | 15-20MPa |
| Dichtingsproductvolume: | 4L/min | Diameter van A/B-dichtingsproduct: | 570mm/280mm |
| De drukverhouding van de dichtingsproduct uitspreidende lucht: | 50:1 | Gemengd tarief: | 6:1-14:1 |
| Hoog licht: | de machine van de siliconeextruder,dubbele verglazingsmateriaal |
||

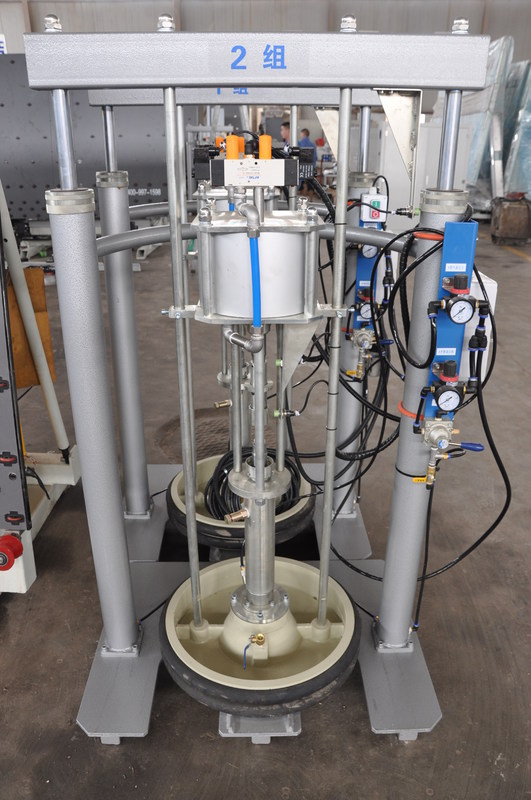

The most popular Sealant-spreading Machine/silicone glue sealing machine for sealed insulating glassHot sale
This equipment was designed by advanced technology from abroad and inside of China.
It is special equipment used for spreading the two-component polysulphide glue and/or
two-component silicone structure glue for the aluminum type insulating glass or curtain
wall glass.A and B pump adopt Korea brand HASCO.So it can ensure
the reliable working-effect.
Special and convenient mixed device can ensure the high quality mixing of the two-component polysulphide
glue and/or two-component silicone structure glue. This equipment is featured by uniform mixture and continuous
stability of extruded glue, good spreading effect and high production efficiency.
Main feature
1). Pneumatic control ,split type structure ,easy to operate
2). Suitable for mass production of insulating glass and curtain walls
3). Main and auxiliary motor all adopt American advanced technology, stable power,large sealant output
4).Integrated structure of base material pump, curing agent pump and proportioning pump ,avoid leaking sealant
5).Special device in base material pump and curing agent pump , avoid running idle
6).Special check valve in proportioning pump to make the sealant coming out more fluently , suitable for all kinds
of sealant ,avoid incomplete mixing .
7). Multichannel filtering device, eliminate the impurities into the pump body.
8).International popular type unique gun ,to make the mixing uniformity .Stainless steel mixing splindle ,
precise and durable .
9). The check valve is made of high wear-resistant materials, directional stability, long service life .
10).Equipped with safety valve ,guarantee the operating safety .
11). The rotating arm is equipped with a universal device, flexible and portable .

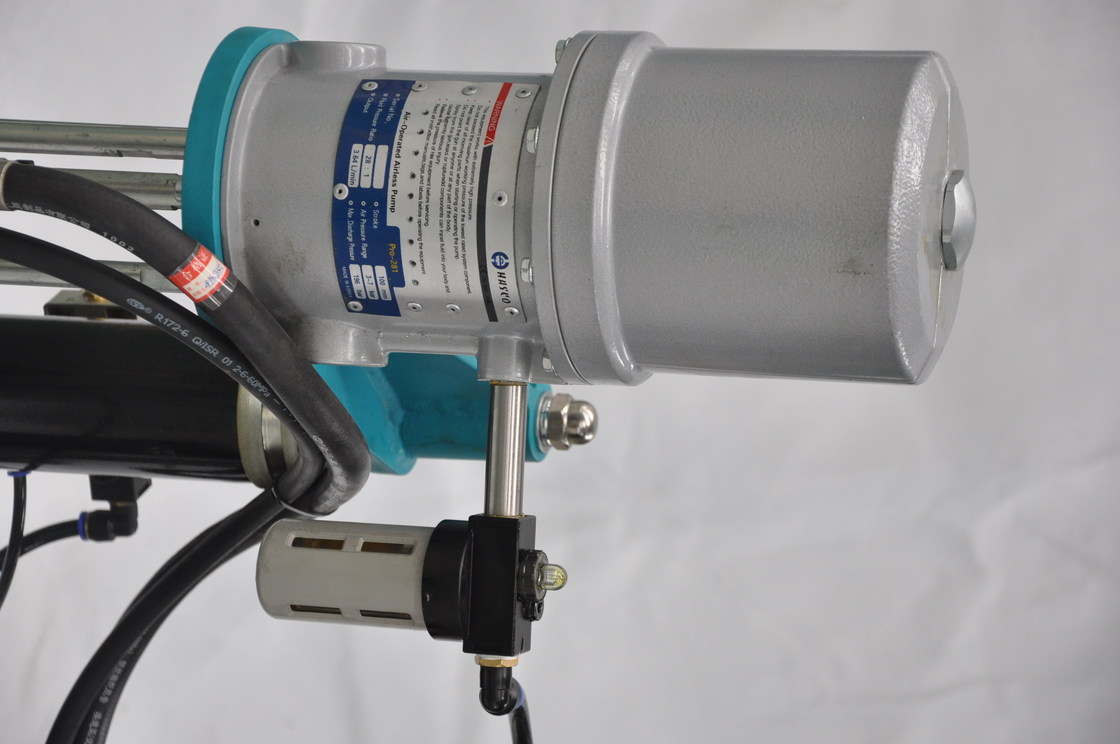

1,Min motor
Adopted Korea HASCO to improve equipment efficiency.
2,B motor
Adopted Korea HASCO to improve equipment efficiency.
3,Sealant gun
We adopted the Sealant gun from Korea HASCO.
Stainless steel mix pipe and hybrid mandrel,easy to clean glue.
4,Proportional pump & Safety valve
Special check valve in the pump to make sure extrude glue fluently and avoid incomplete mixing.
5,Glue bucket
Gluing evenly without bubbles.
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
| Weight | 490kg |
| Capacity of the glue drum | 200-300 ml/200 kg |
