450mm*280mm Groene Isolerende Glasproductielijn

lijiang auto brand new Insulating Glass Production Line, GLASS LINE ,green 2020new production

ALL THE IG PRODUCTS ARE 20% OFF ON MAY,2020

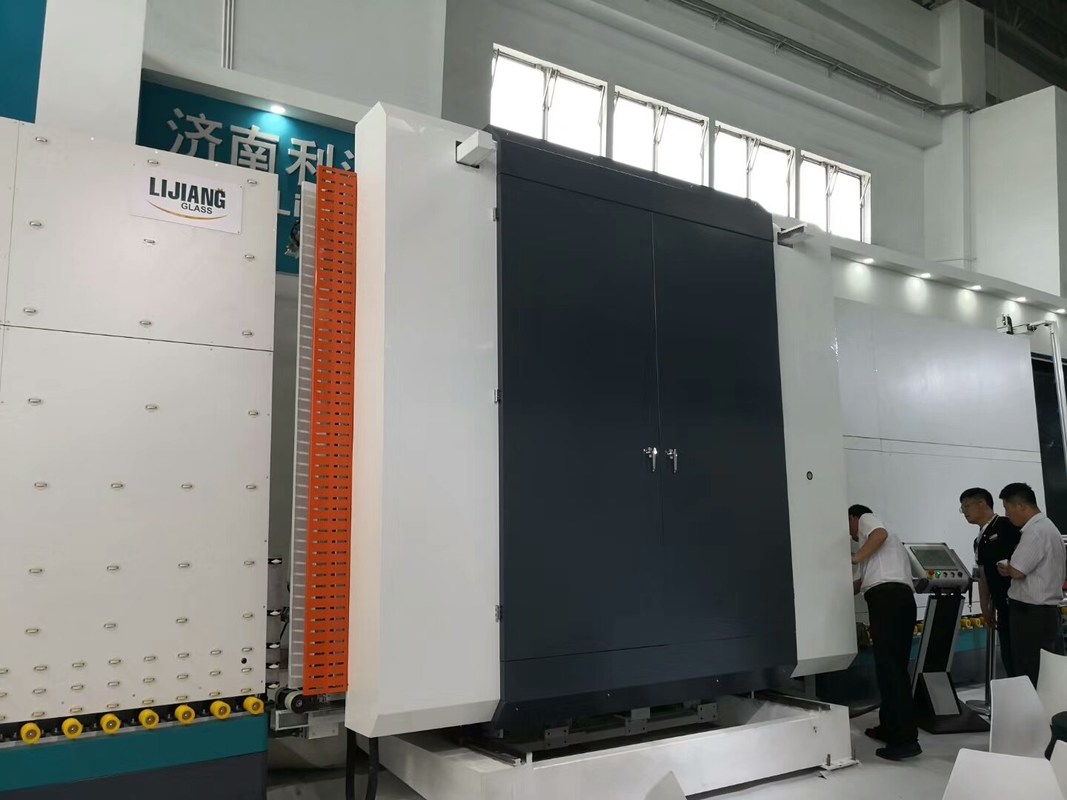

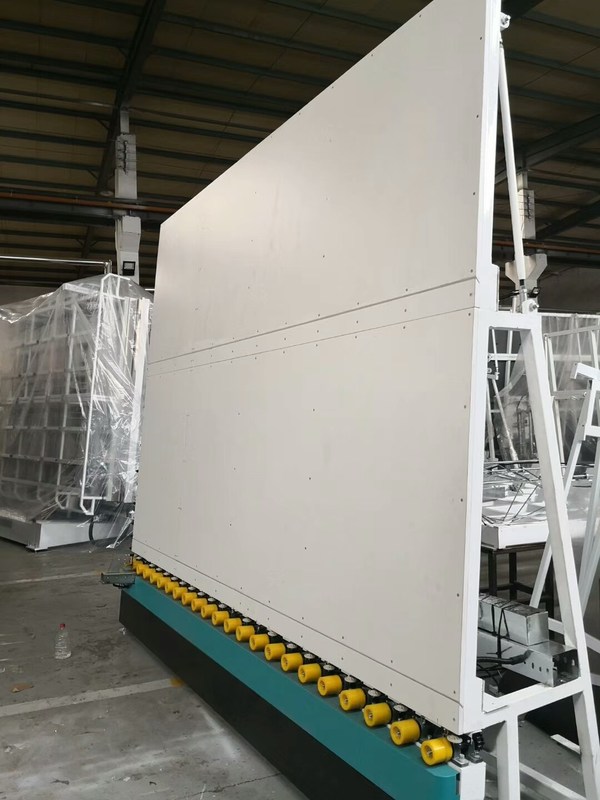

IJIANG production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits. Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production high quality.

The value of the electronic ruler when the beam is zero: the value of the electronic ruler when the beam's dc electric push rod is fully retracted.

When entering the glass in section 11.06, the forward positioning distance after entering the glass: it is to set the glass to enter the pressure section of the plate and transmit the inverted glass positioning over a long distance.

when the glass is in the section, the reverse positioning distance after the forward positioning is completed: it is to set the glass to enter the section of plate pressure and then transmit the glass positioning distance backward.

Automatic transmission speed of glass: set the speed of automatic transmission of glass in section 06.

Automatic closing speed: refers to the opening and closing speed of the front plate.

 Before entering the glass, the opening position of the front plate: it is to set the opening position of the front plate each time before entering the glass.

Compression torque setting 1: set the servo compression torque when the glass size is within the area of the suction cup.

Compression torque setting 2: set the servo compression torque when the glass size is within the suction cup area 2.

Compression torque setting 3: set the servo compression torque when the glass size is within the three zones of the suction cup.

Compression torque setting 4: set the servo compression torque when the glass size is within the four zones of the suction cup.

Press time setting 3: set the length of the servo press time when the glass size is in the three zones of the suction cup.

Press time setting 4: set the length of the servo press time when the glass size is within the four zones of the suction cup.

The moment before pressing glass, plate distance before the second sheet (3 pieces) glass spacing: refers to the moment before pressing or gas adsorption of glass plate before and after the linking piece on the aluminum frame interval, recommended distance is 6 ~ 8 mm.

Thickness gauge display number: refers to the real-time display of thickness gauge value.

Maximum value of thickness gauge: it is the value of the thickness gauge set when the thick cylinder is fully open (for thickness measurement and calibration).

The minimum value of the thickness gauge: is the value of the gauge set when the thick cylinder is completely closed (for thickness measurement and calibration).

 Positive reversal clearance of front plate: deviation value between positive and negative turns of front plate.

Distance between thick cylinder and thick nylon block: refers to the distance between two positioned nylon blocks before and after full opening of thick cylinder.
