Plaats van herkomst:
CHINA
Merknaam:
Lijiang
Certificering:
CE
Modelnummer:
LJZK 2535
Video

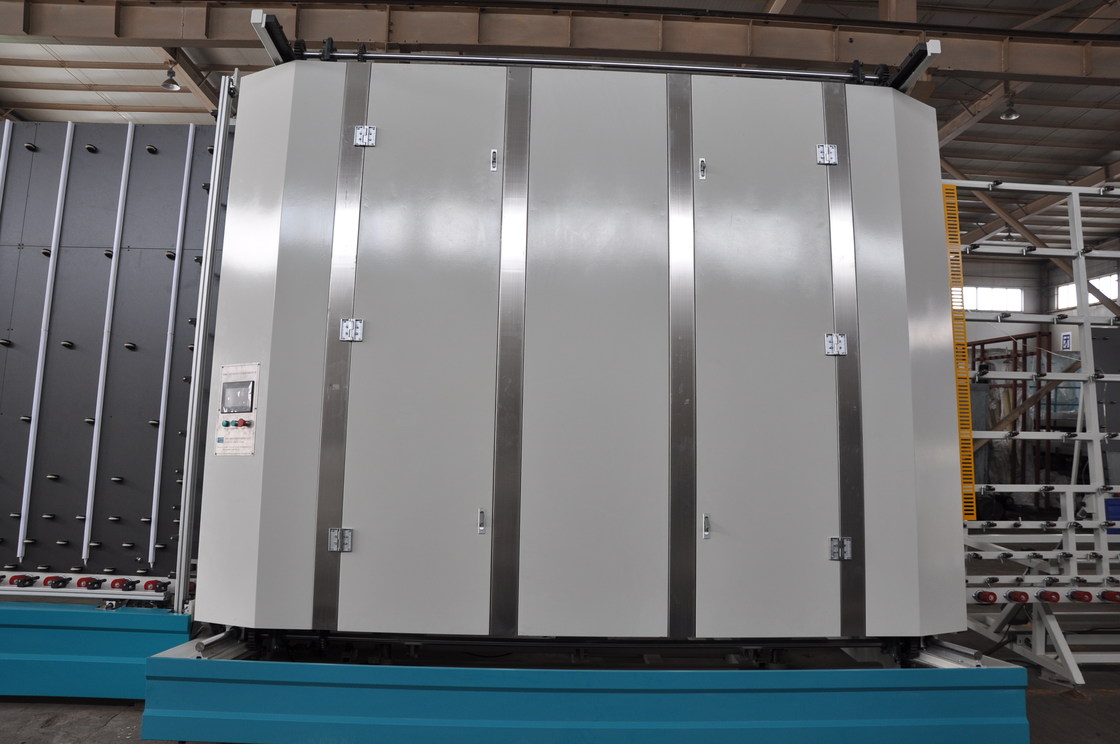

8mm 10mm 12mm High Rate Tempered Curved Thermal Insulation Low-E Glass Curtain Wall Glass Machine
The insulating glass machine can perform the following functions: Glass cleaning, placement of aluminum frames, normal double glazing, plain three glass, shaped glass and double glazing with a second weight.
The insulating glass machine is a special device in the production of insulating glass for aluminum strips, which has the advantage of a small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, European design concept, easy and smart use;
2, world-famous brands of key components ensure stable operation and long service life;
3, designed for high-quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4, Large glass processing scale, various models and customization are available;
5, Large output capacity, 1,000 pieces output in one working day;
6, applicable for double layer, triple layer, step plate and abnormal shape insulating glass;
7, automatic argon air gas filling during the glass plate assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
Company Information
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
